Kenmerken Galerij Productomschrijving Verzoek om een Citaat

Kenmerken

Specificaties

Application: PIPE

Plastic Processed: PE, PP, HDPE/PP

Condition: New

Screw Design: Single-screw

Screw diameter (mm): 65 mm

Screw L/D Ratio: 33

Screw Speed (rpm): 36 rpm

Showroom Location: Pakistan, Kenya, Algeria, Sri Lanka, Romania, Ukraine

Voltage: 380V/50HZ

Dimension(L*W*H): 4500

Power (kW): 98

Weight: 3T

Warranty: 1 Year

Key Selling Points: Competitive Price

Applicable Industries: Hotels, Building Material Shops, Manufacturing Plant, Construction worksÂ , Energy & Mining

Marketing Type: New Product 2020

Video outgoing-inspection: Provided

Machinery Test Report: Provided

Warranty of core components: 1 Year

Core Components: Motor, Pump, Gearbox

The inverter: ABB

Contactor: schneider

The temperature-controlled meter: omron

Automatic Grade: Fully automatic

Power(W): 45

Motor: Siemens Beide

Inverter: ABB Brand

Finished Products: PP PE PPR PC Pipe

After-sales Service Provided: Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Online support

After Warranty Service: Video technical support, No service, Online support

Local ServiceÂ Location: Pakistan, Thailand, Kenya

Certificering: CE ISO

Basis informatie

Certificering: CE ISO

Betalen & Verzenden Algemene voorwaarden

Packaging Details: Fixed wire, container

Productomschrijving

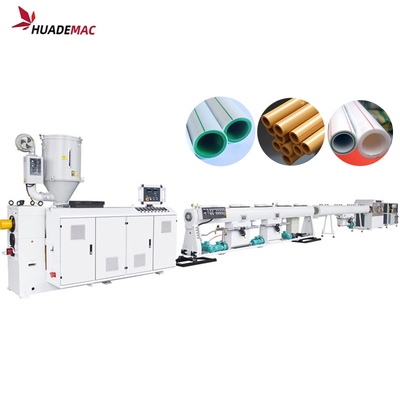

φ75-160mm PPR plastic tube making machine/PPR tube extrusion line/PPR tube production line

φ20-63mm PPR plastic tube making machine/ PPR tube extrusion line/PPR tube production line

Characteristics and applications: 1.PLC control, high degree of automation 2.Adopting specilized screw with good plasticizing effect 3.Adopting compound spiral engine head, effectively deleting memory function of the material 4.Vacuum calibration, constant temperature control, eliminating pipe stress 5.Adopting co-extrusion head to add color line 6.High extrusion capacity, low temperature of melt, equal temperature of melt 7.Wide processing range of raw material

No.	Name	Model	Number
1	Single screw extruder	SJ75/33	1set
2	Powder feeder	HD-AL450	1set
3	Hopper dryer	HD100	1set
4	Single screw extruder	SJ25/25	1set
5	PPR Extrusion die	Φ75-Φ160	1set
6	Vacuum sizing box	SJGFD160	1set
7	Cooling water tank	SJGFP160	1set
8	Two-claw haul-off machine	SGFQ160	1set
9	Dust-free cutter	SGFG63(W)	1set
10	Stacker	75-160	1set

φ75-160mm PPR plastic tube making machine/PPR tube extrusion line/PPR tube production line photos

SJ75/33 PPR TUBE EXTRUDER

SJ65/33 PPR TUBE EXTRUDER MAIN TECHNICAL PARAMETERS

1. Single screw extruder: model SJ65 / 33 2. Cylinder and screw material: 38CrMoAlA, after nitriding and grinding, the depth of nitriding layer is more than or equal to 0.6mm, which has sufficient strength, wear resistance and corrosion resistance; 3. Cylinder and screw structure: barrier screw, asymmetric slotted barrel design. 4. The gearbox is equipped with strong thrust bearing and high torque output; the gear is made of special alloy, with hard tooth surface and gear grinding process; high quality, high torque and high speed gearbox; low heat, low noise, long life and hard tooth surface reducer is equipped with external cooling system 5. Temperature control table of OMRON 6. ABB or Siemens brand inverter 7. Schneider or Siemens AC contactor 8. Siemens Bede motor 9. Diameter of screw: Φ 75mm 10. Length diameter ratio of screw: 33:1 11. Driving motor power: 110kW high speed screw 12. Gearbox: high torque, low noise, hard tooth surface grinding reducer is equipped with external cooling circulation system

13. Heating power of barrel: 5 × 3.5kw (cast aluminum heating ring) 14. Cooling power : 5 × 0.25kw forced air cooling 15. The output is 200-300kg / h

POWDER FEEDER

Powder feeder: model HD-AL450 The storage hopper is made of stainless steel The feeding amount can be adjusted as required Technical Parameter Motor power: 1.5kw The conveying capacity is 450kg / h

HOPPER DRYER

Hopper dryer, model: HD100 The drying method is hot air drying Technical Parameter Fans power: 0.25kw Heating power: 5.4kw Loading capacity: 75kg

Single Screw Co-extrusion Marking Line Extruder

MOdel：SJ25/25

Siemens or ABB frequency converter Cylinder: 38CrMoA1A, nitriding treatment, forced water cooling feeding section Screw: 38CrMoA1A, nitriding treatment Technical Parameter Screw diameter: Φ 25mm Screw length diameter ratio: 25:1 Driving motor power: 1.1kw

Generally do 1 and 4 lines, according to customer requirements

MOULD/DIE

Mould specification:●Φ75、Φ90、Φ110、Φ140、Φ160

1. The maximum external dimension of the mould is 280 * the total length is 710 2. Die material: 40Cr forging 3. Vacuum sizing sleeve: Brass H62 4. Hard chromium plating on die runner 5. Core mold spray Teflon 6. The outer surface of the mould is sprayed with high temperature antirust paint 7. A set of mould mica heater

Vacuum Sizing Box

Vacuum tank's model: SGFD63 Electric length adjusting device One room finalization Stainless steel box Strong spray cooling AC contactor of Schneider company Technical Parameter Length of vacuum sizing box: 6000mm Vacuum degree: 0.03 ~ 0.06mpa Power of vacuum pump: 4kwx2 sets Water pump power: 4kwx2 sets Power of longitudinal moving motor: 0.75kw Before and after movement range: ± 600mm The range of up and down movement: ± 100 mm Left and right adjustment range: ± 30mm

Spary Cooling Box

Spray cooling box's model: SJGFP63 Power spray cooling Stainless steel box Technical Parameter Length of spray box: 6000mm Water pump power: 4kw

3-Claw Haul-off Machine

Frequency control of Jiale brand Technical Parameter Driving motor power: 1.1kw * 3 sets The maximum traction speed: 0.5-20m/min The maximum traction force: 3000n Clamping mode: Pneumatic

Dust-free Cutter

Cutting mode: blade cutting PLC control Cutting without chips Cemented carbide saw blade AC contactor of Schneider company Technical Parameter Power of rotating motor: 1.5kw

Stacker

Turning length: 5800 mm Automatic turnover and discharging
